Estimation of the Hurst function of a multifractional Brownian motion#
Code author: Frédéric Richard <frederic.richard_at_univ-amu.fr>
The multifractional Brownian motion is a random process whose regularity varies in time. For this process, this regularity is determined by a functional parameter called the Hurst function. This function maps time position into the interval (0, 1). The larger the value, the smoother the process at a position. In this example, we use varprox to estimate the Hurst function.
To define the objective function, we use a least square criterion which compares the local quadratic variations of an observed process to the theoretical ones of a multifractional Brownian motion. We use a TV regularization to stabilize the estimation and evaluate its effect.
[1]:
from afbf import process
from numpy.random import default_rng, seed
from numpy import zeros, std, arange, power, mean, maximum, minimum, log, array
from numpy import concatenate, ones, inf
from scipy.optimize import lsq_linear
from varprox import Minimize, Parameters
from varprox.models.model_mfbm import Ffun, DFfun
from matplotlib import pyplot as plt
def Simulate_MFBM(H, seed_n=1):
"""Simulate the multi-fractional Brownian motion of Hurst function H.
:param ndarray H: The hurst function of the process.
:type H: :ref:`ndarray`
:param seed_n: A seed number.
:type seed_n: int.
:returns: a simulation of the process.
"""
N = H.size
fbm = process()
y = zeros((N,))
if min(H) != max(H):
# Simulation of a multifractional Brownian motion.
for j in range(N):
seed(seed_n)
fbm.param = H[j]
fbm.Simulate(N)
y[j] = 10 * fbm.y[j, 0] / std(fbm.y)
else:
# Simulation of a fractional Brownian motion.
seed(seed_n)
fbm.param = H[0]
fbm.Simulate(N)
y = fbm.y
return y
def Estimate_LocalSemiVariograms(y, scales, w_size, w_step, order=0):
"""Compute the local semi-variogram of the process.
:param y: A process
:type H: :ref:`ndarray`
:param scales: Scales at which the semi-variogram is to be computed.
:type H: :ref:`ndarray`
:param w_size: Size of the window where the semi-variogram is computed.
:type w_size: int
:param w_step: Step between two successive positions of computations.
:type w_step: int
:param order: Order of the increments. The default is 0.
:type order: int
:returns: Semi-variograms at each position (row) and scale (column).
"""
N = y.size
order += 1
Nr = N - order * max(scales) - w_size
if Nr < 0:
raise Exception("Decrease max of scales or w_size.")
v = zeros((Nr // w_step + 1, scales.size))
for j in range(scales.size):
# Increments
scale = scales[j]
increm = zeros(y.shape)
increm[:] = y[:]
for o in range(order):
increm = increm[:-scale] - increm[scale:]
increm = power(increm[:-scale] - increm[scale:], 2)
# Local semi-variogram.
w_ind = 0
for w in range(0, Nr, w_step):
v[w_ind, j] = 0.5 * mean(increm[w:w + w_size])
w_ind += 1
return v
def Estimate_HurstFunction(scales, v):
"""Estimate the Hurst function using linear regressions.
:param scales: Scales at which the semi-variogram was computed.
:type H: :ref:`ndarray`
:param v: Empirical semi-variogram.
:type v: :ref:`ndarray`
:return: Variance factors, Hurst function.
:rtype: :ref:`ndarray`
"""
N = v.shape[0] # Number of positions.
P = v.shape[1] # Number of scales.
v = log(maximum(v, 1e-310))
scales = 2 * log(scales).reshape((P, 1))
X = concatenate((scales, ones((P, 1))), axis=1)
lb = array([0, - inf])
ub = array([1, inf])
H = zeros((N,))
c = zeros((N,))
for j in range(N):
# Estimate the Hurst index at the nth position.
pb = lsq_linear(X, v[j, :], bounds=(lb, ub))
H[j] = pb.x[0]
c[j] = pb.x[1]
return H, c
rng = default_rng()
seed(15)
# Experiment parameters
N = 1000 # Size of the observed process.
order = 1 # Order of the quadratic variations to analyze the process.
scales = array([1, 5, 10]) # scales at which analyze the process.
w_size = 400 # Size of the local window where the process is analyzed.
w_step = 20 # Displacement step of the window.
H1 = 0.2 # Minimal Hurst value.
H2 = 0.3 # Maximal Hurst value.
mfbm = True # Set to True for experiment on multifractional Brownian field.
#: 1. Simulation.
#: Create the Hurst function.
if mfbm:
T = arange(stop=N, step=2)
N = N - 1
T = power(T / N, 2)
H = (1 - T) * H1 + T * H2
H = concatenate((H[::-1], H[1:]))
else:
H = 0.3 * ones(H.shape)
#: Simulate a mfbm of Hurst function H.
seed_n = 1
y = Simulate_MFBM(H, seed_n)
# Estimate the local semi-variogram of y.
v = Estimate_LocalSemiVariograms(y, scales, w_size, w_step, order)
#: 2. Estimations.
#: 2.1. Estimate the Hurst function by linear regression.
Hest1, c1 = Estimate_HurstFunction(scales, v)
#: 2.2. Estimate the Hurst function by minimisation without regularization.
scales2 = power(scales, 2)
logscales = log(scales2)
w = v.reshape((v.size,), order="F")
Hest2 = ones(Hest1.shape)
Hest2[:] = Hest1[:]
Hest2 = minimum(maximum(0.0001, Hest2), 0.9999)
pb = Minimize(Hest2, w, Ffun, DFfun, scales2, logscales, 0)
param = Parameters()
param.load("plot_mfbm.ini")
param.reg.name = None
pb.params = param
print("Optimization without regularization:")
Hest2, c2 = pb.argmin_h()
h2value = pb.h_value()
#: 2.3. Estimate of the Hurst function by minimisation with a regularization.
#: Regularization parameter x.
Hest3 = ones(Hest2.shape)
Hest3[:] = Hest1[:]
Hest3 = minimum(maximum(0.0001, Hest3), 0.9999)
pb = Minimize(Hest3, w, Ffun, DFfun, scales2, logscales, 0)
param.load("./plot_mfbm.ini")
param.reg.name = 'tv-1d'
pb.params = param
print("Optimization with TV regularization:")
Hest3, c3 = pb.argmin_h()
#: 3. Plot results.
plt.figure(1)
w_size2 = w_size // 2

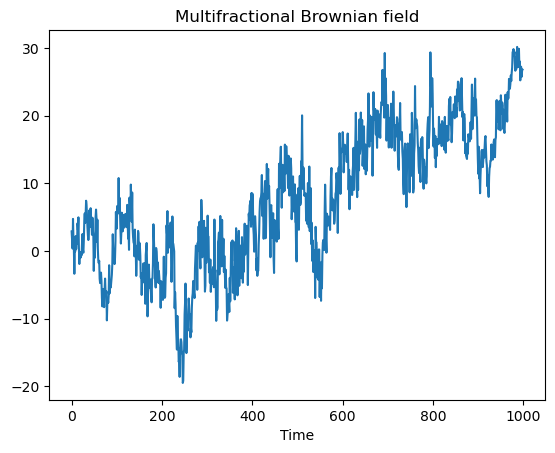

plt.plot(y)
plt.title("Multifractional Brownian field")
plt.xlabel('Time')
plt.show()
plt.figure(2)
w_size2 = w_size // 2
t = arange(H.size)
t = t[w_size2:-w_size2:w_step]
t = t[0:Hest1.size]
Htrue = H[w_size2:-w_size2:w_step]
Htrue = Htrue[0:Hest1.size]

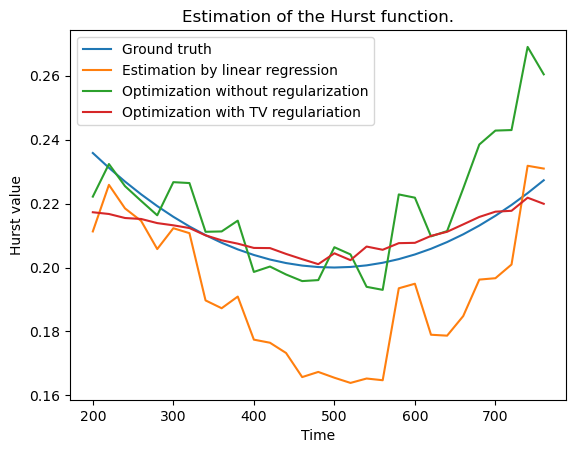

plt.plot(t, Htrue, label="Ground truth")
plt.plot(t, Hest1, label="Estimation by linear regression")
plt.plot(t, Hest2, label="Optimization without regularization")
plt.plot(t, Hest3, label="Optimization with TV regulariation")
plt.title("Estimation of the Hurst function.")
plt.legend()
plt.xlabel('Time')
plt.ylabel('Hurst value')
plt.show()
